My electrician told me what kind of wire to get and how to do the rough-in. I located the outlet positions, cut the drywall and ran the wire back to near the breaker box.

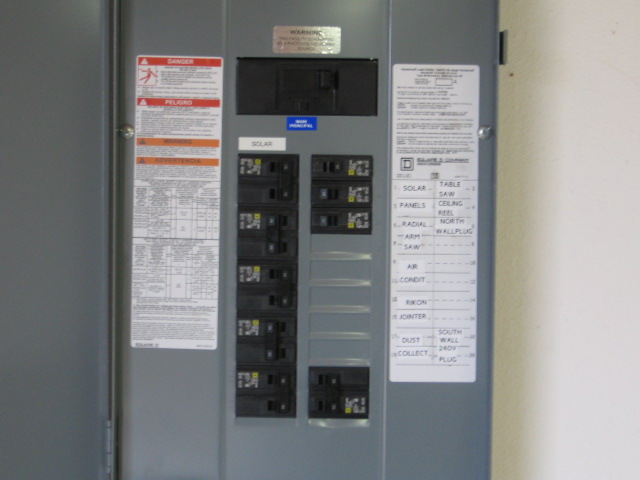

The solar panel installation included the cost and wiring of a secondary breaker box, so I'll leverage that for the new circuits.

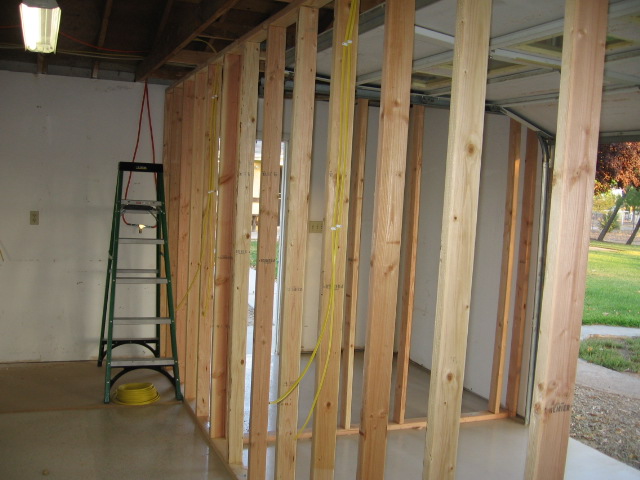

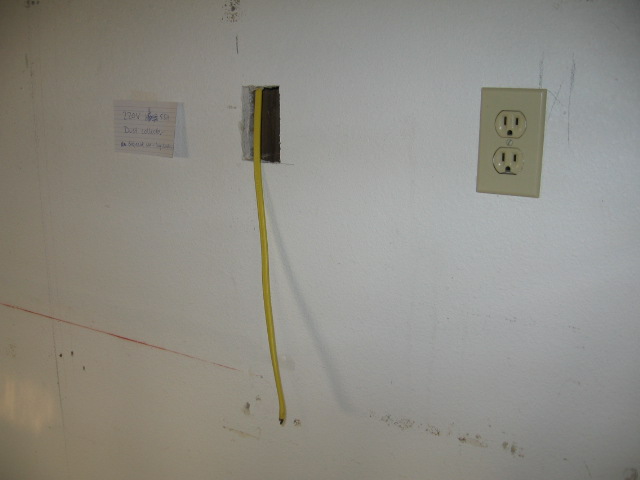

The first picture is the new back wall of the shop with three new 110V plugs, to the right is the wire waiting for the 220V for the dust collector.

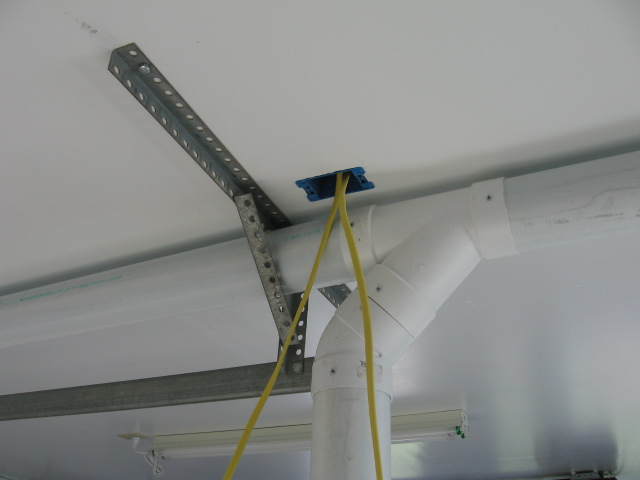

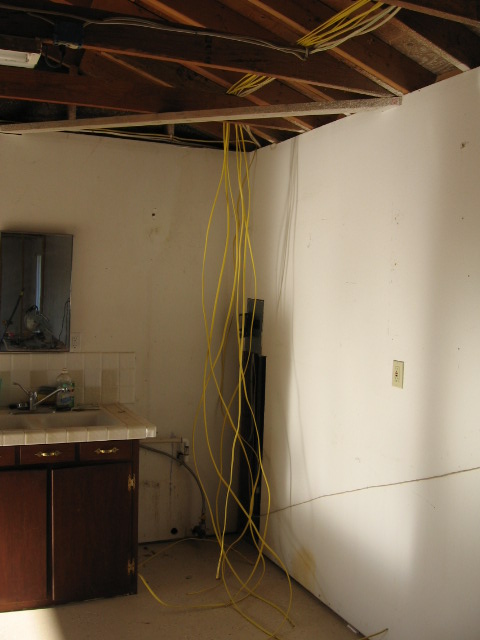

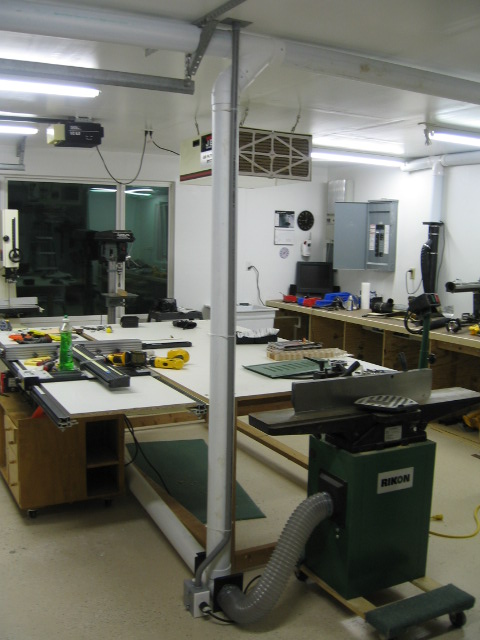

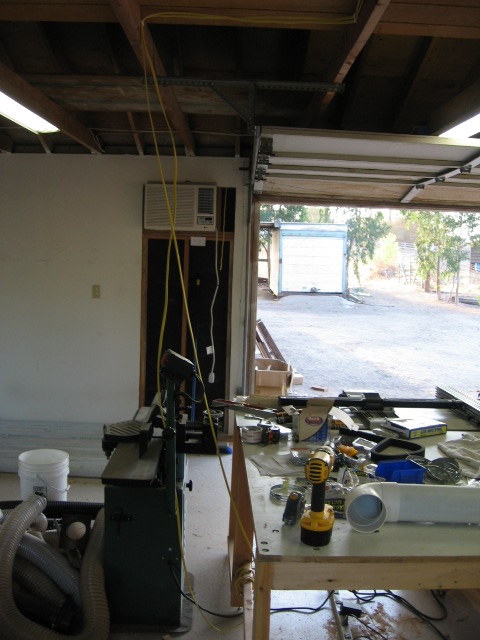

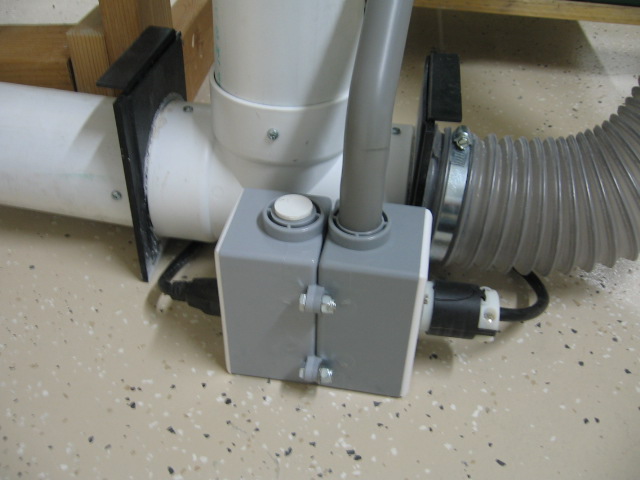

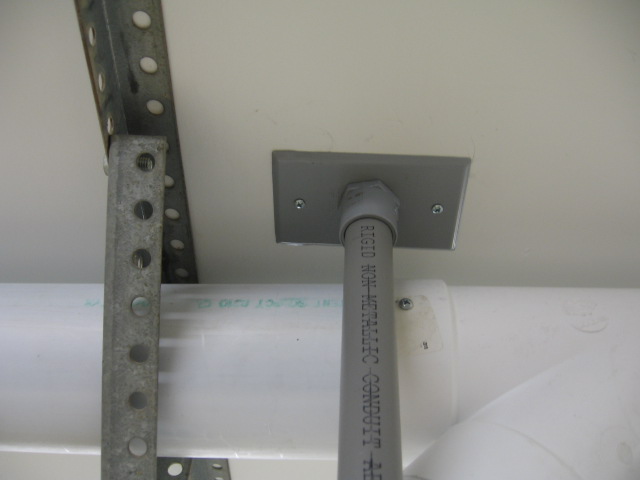

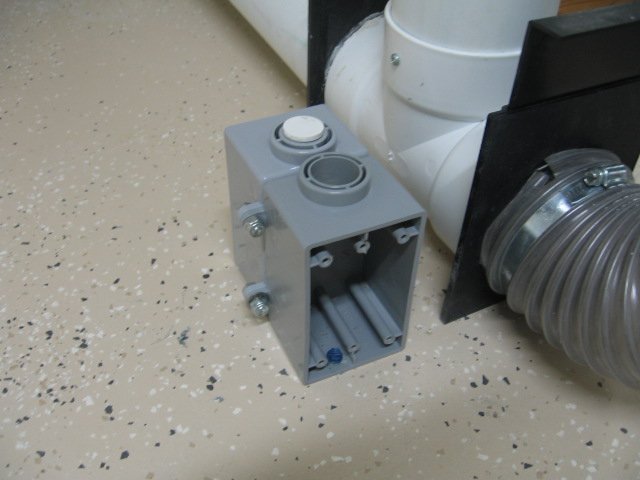

Bottom left are two wires that will be run within a conduit from the ceiling to the floor. One wire takes 220V to the jointer, the other takes 110V to the table saw. I decided to run this conduit from the ceiling rather than dig a trench in the concrete slab. Last are all of the new wires hanging from the rafter waiting for the new circuit breaker box.
|
